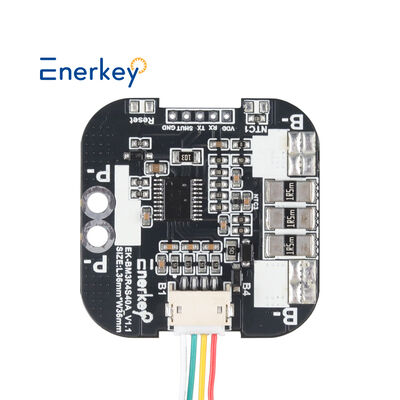

Enerkey Lithium Battery Charger Protection Module 3S 40A 12.6V SIB/Lto/Li-ion/Lifepo4 BMS for Car Start

Nome da marca:	Enerkey
Número do modelo:	EK-BM3R4S40A
Quantidade mínima:	10Pieces
preço:	$4.5-$5
Detalhes da embalagem:	Caixa de papel forte +espuma EVA
Condições de pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

Shenzhen, China

Certificação:

ISO9001/CE/ROHS

Nome do produto:

Bateria de lítio BMS de 3S 40A

Espessura de cobre:

Aplicação:

Armazenamento de energia para veículos rodoviários

Espessura da placa:

1,6 mm

Tipo de Bateria:

Li-ion/Lifepo4/Lto/SIB

Faixa de tensão operacional permitida:

0-30V

Corrente de descarga nominalcorrente:

Corrente de partida de pico:

Usado para:

Tabela de protecção da bateria de lítio

Palavras-chave:

bms 3s

Material base:

Acabamento de Superfície:

Estacas de pulverização sem chumbo

Tamanho do produto:

L36xL36xT5mm

Peso com pacote:

0,08 kg

Habilidade da fonte:

1000000pcs por dia

Descrição do produto

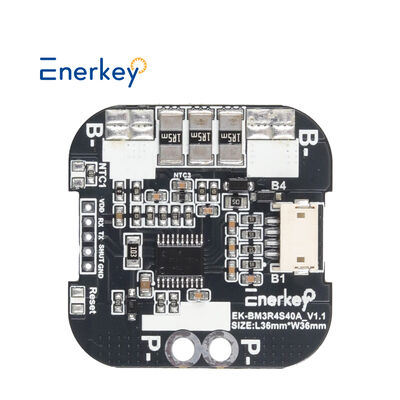

Enerkey Lithium Battery Charger Protection Module 3S 40A 12.6V SIB/Lto/Li-ion/Lifepo4 BMS for Car Start

Product Description

Product Overview

The 3S4S40A lithium battery protection board is designed for 3-cell (3S) and 4-cell (4S) lithium battery packs, featuring a 40A high current carrying capacity. It integrates overcharge, over-discharge, overcurrent, and short-circuit protection functions to ensure safe and stable battery operation. Suitable for power tools, energy storage systems, electric bicycles, and other applications, it provides an efficient and reliable battery management solution.

Core Features

High Current Carrying Capacity: Supports 40A continuous discharge current, meeting the needs of high-power devices.

Multiple Protection Mechanisms:

Overcharge Protection: Prevents battery voltage from exceeding the safe threshold.
Over-discharge Protection: Prevents damage from deep discharge.
Overcurrent Protection: Limits abnormal current, protecting circuit safety.
Short-circuit Protection: Quickly disconnects the circuit, preventing equipment damage.

Heat Dissipation Design: Equipped with a heat sink to effectively reduce operating temperature and improve stability.
Temperature Control Monitoring: Integrated temperature sensor to monitor battery temperature in real time, preventing overheating risks.

Enerkey Lithium Battery Charger Protection Module 3S 40A 12.6V SIB/Lto/Li-ion/Lifepo4 BMS for Car Start 0

Technical Parameters

	Item type		Parameters
1	Parameter Overview	Product Model	EK-BM3R4S40A
		Product Size(mm)	L36W36T5
		Product Weight(kg)	0.08
		Product Material	FR-4 / Lead-free spray tin
		Applicable battery type	Lifepo4		Li-ion		Lto		SIB
		Applicable battery string	3S / 4S		3S / 4S		3S / 4S		3S / 4S
		Rated discharge current	40A		40A		40A		40A
		Peak starting current	85A		85A		85A		85A
	Item type		Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)
2	Charging protection	Overvoltage protection voltage value	3.65V/1S	3.50V/1S	4.25V/1S	4.05V/1S	2.85V/1S	2.75V/1S	3.95V/1S	3.80V/1S
		Overcurrent value	40A/2S, disconnect charger to recover
		Low temperature value	Charge over-temperature protection 60℃/2S / Release 55℃/2S
		Overtemperature value	Charging low temperature protection -5℃/2S / Release 0℃/2S
3	Discharge protection	Undervoltage protection voltage value	2.30V/1S	2.70V/1S	2.75V/1S	3.0V/1S	1.70V/1S	1.80V/1S	1.50V/1S	2.00V/1S
		①Overcurrent protection value	45A/2S, disconnect load or activate charging
		②Overcurrent protection value	85A/0.5S, disconnect load or activate charging
		Short circuit protection value	150A/64uS, disconnect load or charge activated
		Low temperature value	Discharge over-temperature protection 65℃/2S, release 60℃/2S
		Overtemperature value	Discharge low temperature protection -20℃/2S, release -10℃/2S
4	Others	Standby current consumption	25uA
		Motherboard lock voltage	/

Size $ Packing List

Package included:

1 * BMS

1 * NTC Terminal Cable(Please tell us if you need it with NTC)

1 * Terminal Cable

Enerkey Lithium Battery Charger Protection Module 3S 40A 12.6V SIB/Lto/Li-ion/Lifepo4 BMS for Car Start 3

Wire Diagram

Enerkey Lithium Battery Charger Protection Module 3S 40A 12.6V SIB/Lto/Li-ion/Lifepo4 BMS for Car Start 4

Wiring precautions:
1. Installing the protective board requires a certain amount of technical electronic knowledge.
2. When wiring, first connect the B- wire at the soldering pad position to the total negative terminal of the battery (the B- wire should be soldered to a short and thick wire) and solder the wired terminal to the battery pack first, and then insert the protective plate.
3. The connection between the battery terminal B- and the protection board terminal B- should be short and thick, otherwise it will cause the protection board to charge and discharge in advance and malfunction.

4. You need to use thick wires when wiring P+/P-. Wires that are too thin and too long will burn the board!

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

Noted: We are source manufacturer, We have own brand for "EnerKey",We can customized product as your requirement(Voltage, Wire,Etc) .

We can provide you competitive price in the market if you have bulk order, Please don't hesitate to contact us.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
